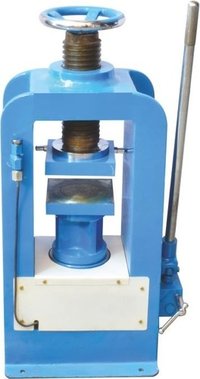

Load frame for universal compression test of rocks

Load frame for universal compression test of rocks
Load frame for universal compression test of rocks
Send Inquiry
Product Code : LI-24
Product Description

Specification:


This equipment is used for determining unconfined compressive strength of intact rock core specimens. The rock sample is cut to length and the ends are machined flat. The specimen is placed in a loading frame and if required heated to the desired test temperature. Axial load is continuously increased on the specimen until peak load and failure are obtained.

The equipment consist of the following replaceable parts :


 Load frame, 200 kn capacity 12 speed from 0.0064 to 1.25 mm/min

 Proving ring, 200 kn with calibration certificate

 Dial gauge 25mm travel, 0.01mm least count.

 Platen set as per ASTM 2938 requirements

 Platen set as per ASTM 2938 requirements

 Horizontal clearance 300 mm

 Vertical clearance 750 mm

 Maximum platen diameter 198 mm

 Maximum platen travel 100 mm

 Specimen diameter 38 mm to 100 mm

 Can test AX, BX, NX rock specimen upto 100 mm
