Power of Zoom Microscope

Power of Zoom Microscope
Power of Zoom Microscope
Product Code : Magna Microscope
Product Description
 Microscope The Power of Zoom

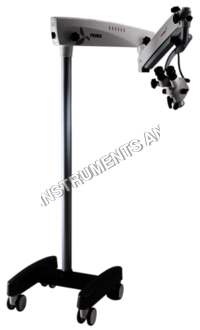

The Labomed® Magna dental microscope brings to your practice the power of crystal clear visualization in a compact, ergonomic design. The system features an Automatic Balancing Arm (ABA) that gives users 360 degrees of freedom in positioning the microscope. A highly responsive apochromatic zoom system ensures ease in landing on the ideal magnification. Super bright, long lasting LED illumination means dental professionals won't miss a thing.

Specifications

Binocular Tubes 0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter
IPD 50-75 mm
Eyepieces WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment
Diopter Adjustment ± 5mm with diopter lock
Apochromatic Magnichanger Galilean Zoom 1:6, convertible to 8 step magnichanger
Zoom Range 0.4-2.5X
Objective NuVar system with variable focal length adjustment from 300-400 mm with fine focus mechanism
Microscope Carrier ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning
Light Source 50 watt LED, 90-240V
Maximum Wattage 195 watts
Built-in Filters Yellow and Green
Vertical Movement of Arm ± 250 mm, power saving feature with light cut-off in park position
Stand Robust, vibration-free stand on a cross base with four lockable caster wheels
Mounting Options Floor stand, wall mount and ceiling mount
